Mounting kit for upper wishbone for Mercedes front axle
Top quality, Made in Germany!
Suitable for the following models:
- Mercedes W105
- Mercedes W108
- Mercedes W109
- Mercedes W110
- Mercedes W111
- Mercedes W112
- Mercedes W113
- Mercedes W120
- Mercedes 190SL W121
- Mercedes W128 (up to axle number: 9531153)
- Mercedes W180 (up to axle number: 9531153)
Scope of delivery:
1x hexagon nut
- DIN – ISO: 934
- Grade / Class: 8.8
- Internal thread: M10 x 1.5
- Power attack for screws and nuts: external hexagon
1x spring ring
- DIN – ISO: 127
- Shape: B shape
- Inner diameter: 10 mm
- Material: Steel
- Surface: galvanized
1x eccentric bolt for wishbone
- External thread: M10 x 1.5
- Length: 85.5 mm
1x threaded bushing for wishbones
- External thread: M18 x 2
- Installation side: top
- Installation side: front axle left
- Installation side: front axle right
- Thread type: right-hand thread
- Length: 53 mm
1x eccentric bushing for wishbones
1x adjustment disc for wishbones
1x disc
2x sealing ring for steering knuckle carrier
1x locking plate for adjusting disc
1x hexagon screw
- External thread: M6
- DIN – ISO: 933
- Grade / Class: 8.8
- Power attack for screws and nuts: external hexagon
- Length: 10 mm
- Surface: yellow galvanized
1x spring ring
- Outer diameter: 11.8 mm
- DIN – ISO: 127
- Height or thickness: 1.5 mm
- Inner diameter: 6 mm
Comparison numbers: 1103300218 / 1105860033 / 1105860433

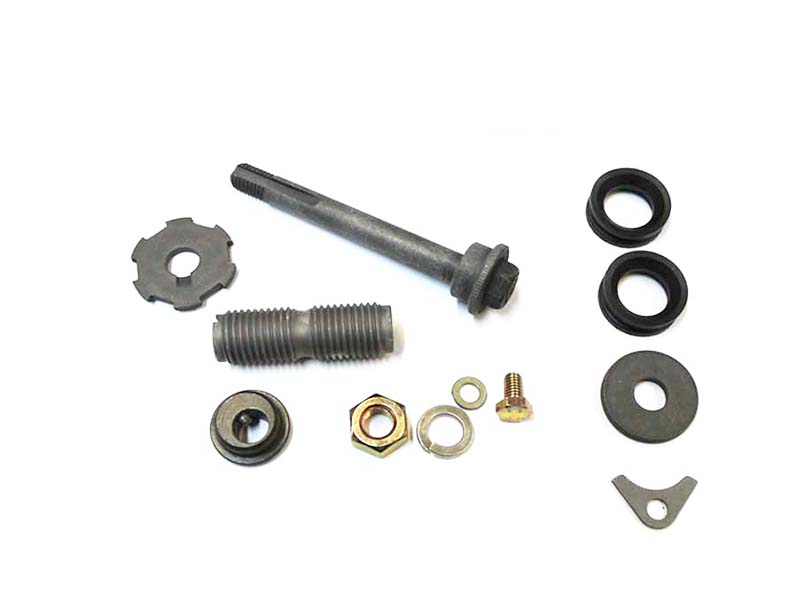

Scope of delivery: A 12-piece repair kit for the front axle above as shown.
“
